1-10pcs USB Type C Connector Type-C With card buckle Female 3A High Current Fast Charging Jack Port USB-C Charger Plug Socket

1-10pcs USB Type C Connector Type-C With card buckle Female 3A High Current Fast Charging Jack Port USB-C Charger Plug Socket

通常価格 $1.55 USD
通常価格 $3.10 USD セール価格 $1.55 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。
Color
Package

1-10pcs USB Type C Connector Type-C With card buckle Female 3A High Current Fast Charging Jack Port USB-C Charger Plug Socket

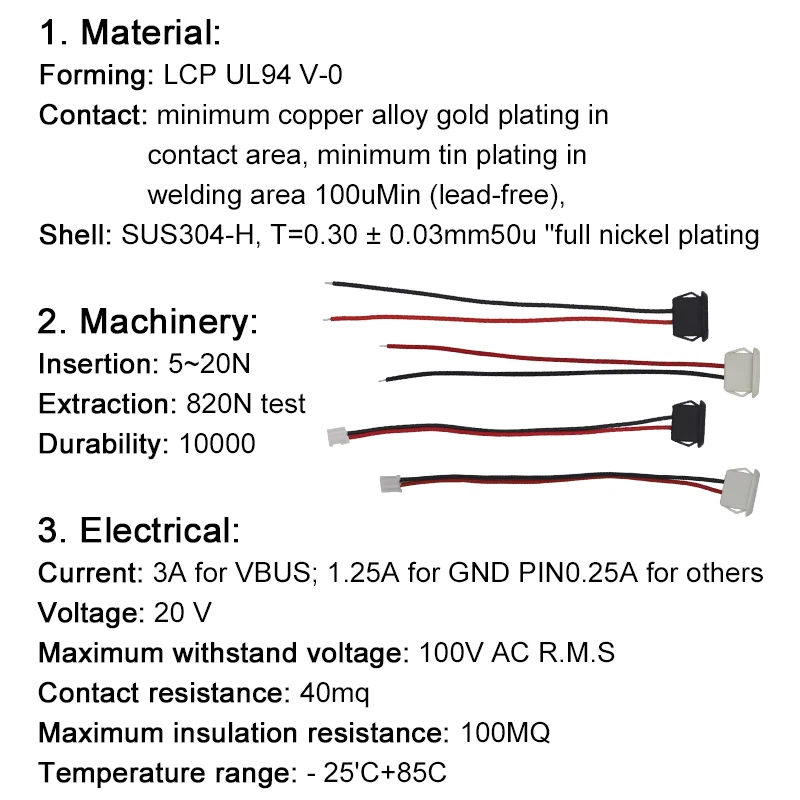

1. Materials:

Forming: LCP UL94 V-0


Contacts: minimum copper alloy gold plating on the contact area, minimum tin plating on the soldering area 100uMin (lead-free),


Shell: SUS304-H, T=0.30±0.03mm50u” full nickel-plated.



2. Machinery:

Insertion: 5~20N.

Extraction: 820N Test

Durability: 10000



3. Electrical:

Current: 3A for VBUS; 1.25A for GND PIN0.25A for others


Voltage: 20 volts


Maximum withstand voltage: 100V AC R.M.S


Contact resistance: 40mq


Maximum insulation resistance: 100MQ


Temperature range -25'C +85C
